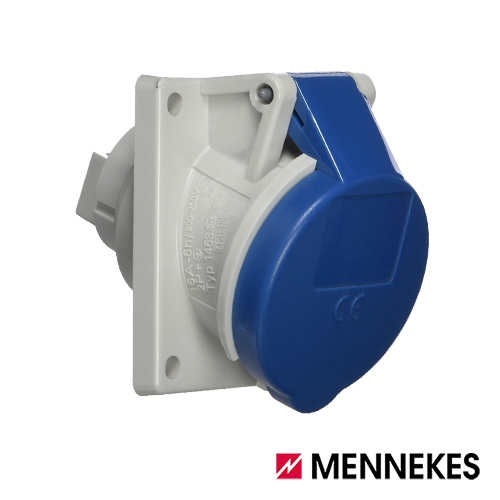

MENNEKES ปลั๊กตัวเมียฝังเฉียง (2P+E) 16A 230V IP44

฿ 250.00

ปลั๊กฝังเฉียง,เพาเวอร์ปลั๊ก

  ขอใบเสนอราคา

Description

MENNEKES ปลั๊กตัวเมียฝังเฉียง,เต้ารับฝังเฉียง
น้ำหนัก                    :   500 กรัม
ยี่ห้อ                        :   MENNEKES
รุ่น                           :   CEE panel mounted receptacles
ขนาดกระแส             :  16A
จำนวนขั้ว                 :  2P+E
ซีรี่ส์                         :  MENNEKES 1463
Rated voltage         :  230
ระดับการป้องกัน        :  IP 44, กันฝุ่น
ตำแหน่งขากราวด์      :  6H

Technical specifications
Panel mounted socket 1463
Ampere                             :   16 A
Poles                                 :   3 p
Voltage                              :   230 V
Clock position                    :  6 h
Hertz                                  :  50-60 Hz
Connection technology      :  Screw terminals
Contact                              :  standard
Protection type                  :  IP 44

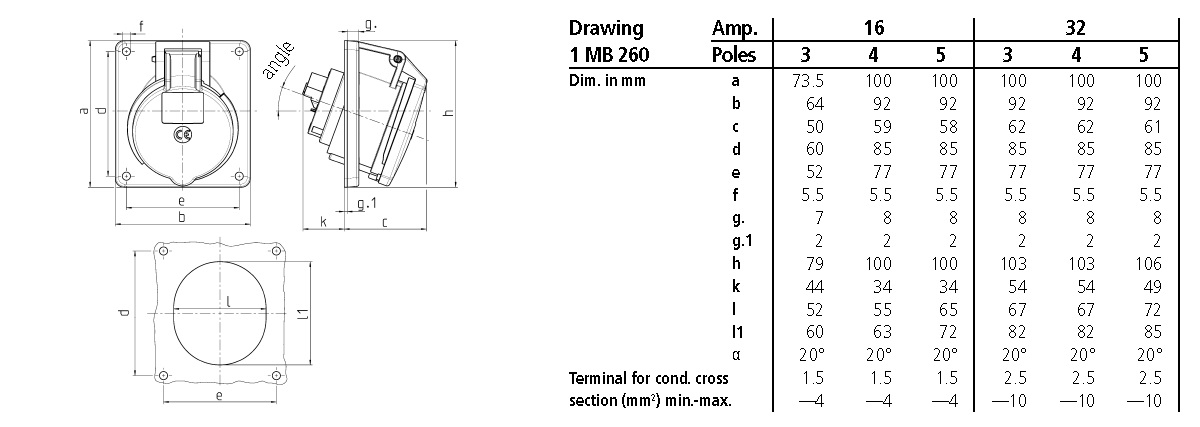

Flange                               :  73.5×64 mm
Fixing hole                         :  60×52 mm
Inclination                          :   20 °
Weight                               :  137 g
Declaration of                    :  NL,Kema
Conformity                            AT,ÖVE
                                             CN,CQC
>> สั่งซื้อหรือสอบถามรายละเอียดสินค้า <<
LINE ID: @manekionline
E-mail: sales@manekionline.com, manekisales1@gmail.com
Tel: 02-665-6170, 090-880-6778
Fax: 02-260-3697
